How to Calculate Speed and Precision with Helical Gear Rack and Pinion

Many machines need a turning motion to become a straight movement. A motor may rotate smoothly, while the working part must travel in a line, stop at the right point, and repeat the same path again and again. That is where gear transmission becomes important.

Speed and precision are not separate concerns. A machine that moves quickly but stops in the wrong place can create extra adjustment work. A machine that positions well but moves too slowly may not suit the production pace. In actual equipment, both conditions need to stay in balance.

A helical gear rack and pinion is often used in systems where linear movement must stay steady over a long travel distance. The pinion turns, the rack moves, and the connected part follows that motion in a controlled path. Common applications include machine tables, automation lines, lifting systems, and positioning equipment.

Practical use often depends on a few basic questions:

  • how fast the system needs to travel
  • how close the movement must stay to the planned position
  • how much load the mechanism carries
  • how often the motion repeats during operation
  • how stable the mounting and supporting structure are

A Helical Gear Rack Factory usually pays close attention to machining, alignment, and tooth quality because small changes in those areas can later affect how the system moves in real use. A rack and pinion set may look simple, yet performance depends on how carefully the parts are made and installed.

How Does A Helical Gear Rack And Pinion Convert Motion

The working idea is straightforward. A pinion rotates, its teeth engage with the rack, and that rotation becomes linear movement. The rack does not spin. Instead, it slides in one direction as the pinion keeps turning.

Helical teeth change the way contact happens. Instead of meeting at one direct point across the full width, the teeth engage more gradually as movement continues. That kind of contact can help the system feel smoother during operation and can spread the load across a slightly longer contact path.

A few practical points shape the movement result:

  • tooth engagement quality
  • installation alignment
  • surface condition of the teeth
  • load carried by the moving part
  • stiffness of the base structure

A simple way to picture the process is to think about a machine carriage. When the pinion turns one way, the carriage moves forward. When rotation changes direction, the carriage moves back. The exact distance depends on the size of the pinion and the way the teeth are arranged.

In practice, motion conversion is not only about direction. It also needs to stay repeatable. If the rack moves slightly differently every time, positioning can become harder to manage. That is why movement quality matters just as much as movement speed.

What Factors Affect Speed Calculation In Gear Movement

Speed calculation starts with the connection between rotation and travel distance. One full turn of the pinion moves the rack a certain distance. The amount of movement depends on pinion size, tooth arrangement, and how the parts are matched during assembly.

Larger pinions usually change the travel relationship compared with smaller ones. A different tooth setup also changes how far the rack travels during each rotation. Because of that, calculations are usually tied to the actual parts being used rather than general assumptions.

A few factors are worth checking before making speed decisions:

Factor Practical Effect
Pinion size Changes travel distance per rotation
Rotation speed Affects how quickly the rack moves
Tooth arrangement Influences contact and motion transfer
Mounting condition Can change real movement performance

Speed is also affected by working load. A lightly loaded carriage may move more easily than a heavier one, while friction from guides, rails, or surrounding structure may reduce how close actual movement stays to the planned value.

For that reason, speed calculation in real equipment should always consider the full system. Pinion size, motor output, guide condition, and load all work together. A clean calculation on paper is useful, although field performance still depends on installation and maintenance.

When equipment needs both speed and positioning control, the travel distance of each rotation becomes a key reference point. Matching that movement with the required work cycle helps engineers and operators decide whether the system fits the application.

How Can Precision Be Evaluated During Gear Rack Operation

Precision is usually judged by how closely the mechanism returns to the intended position. In a positioning system, even a small shift may affect later operations, especially when the machine needs to repeat the same movement many times.

Good precision starts with contact quality. Teeth that engage evenly can keep movement more stable, while rough or uneven contact may create small differences between one cycle and the next. Mounting accuracy matters in the same way because a rack that sits out of alignment may not track along its intended path.

Several conditions help determine how precise the movement feels in daily use:

  • even tooth contact
  • correct rack alignment
  • stable support structure
  • limited vibration during travel
  • regular inspection of wear points

A Helical Gear Rack Factory usually focuses on these areas during production because part quality has a direct effect on later positioning results. Surface finish, tooth consistency, and dimensional control all influence how the rack and pinion work together.

Precision is also linked to maintenance. A system that starts well may lose accuracy if dirt, wear, or loose mounting appears over time. Regular checking of contact areas and support points helps keep movement more stable.

In real applications, precision is not only about the part itself. It is also about the machine frame, guide system, and installation quality. All of those sections support the same goal: keeping motion close to the planned path.

Why Helical Tooth Design Influences Movement Stability

Tooth shape changes the way load is carried during operation. A helical profile creates a gradual contact path, so movement may feel more even than a direct, abrupt contact pattern. That matters in equipment where vibration, noise, and load changes affect daily use.

Stable movement depends on how the teeth meet, how the support structure holds the mechanism, and how much force the connected equipment places on the system. A helical profile can help the motion feel smoother, although alignment and installation still remain important.

For practical users, stability often shows up in small ways:

  • the carriage runs with fewer sudden changes
  • load transfer feels more even
  • motion remains easier to guide
  • repeated positioning becomes more consistent

A helical gear rack and pinion is often chosen when equipment needs controlled travel across longer distances or repeated movement with a steady feel. The tooth design alone does not solve every issue, though it can support smoother operation when the whole system is properly arranged.

What A Helical Gear Rack Factory Usually Considers

Manufacturing quality has a strong connection with later motion accuracy. A Helical Gear Rack Factory often needs to control tooth profile, surface condition, dimensional fit, and material behavior during production.

Practical checks usually include:

  • tooth form consistency
  • surface condition after machining
  • fit between rack and pinion
  • material response during use
  • support for repeated movement

A rack set may look simple after production, yet the details inside those teeth decide how the system behaves in a machine. That is why matching part quality with application needs matters in both manufacturing and installation.

How Does Installation Condition Influence Gear Movement Accuracy

Gear transmission rarely stays accurate on its own after the parts are installed. Even when the rack and pinion are made well, fitting position and mounting quality can still change how the system behaves during operation.

A rack fixed on a base that is not level may create extra pressure in one area and reduce contact in another. Over time, that kind of uneven fit can affect the way the carriage moves and make the motion feel less steady. Small alignment errors often show up later through wear marks, unusual sound, or a slight change in the travel path.

Before the machine goes into daily use, several points usually deserve attention.

  • rack position along the moving path
  • parallel relationship with the guide system
  • fastening condition at mounting points
  • surface condition where the parts meet
  • cleanliness of the installation area

The pinion should also sit in the correct position relative to the rack. When the tooth contact stays even across the working area, movement tends to feel smoother and easier to control. Once the connection shifts out of place, the system may still run, although repeatability can become harder to keep.

In field use, installation accuracy often matters just as much as part quality. A good component placed poorly may lose its expected behavior, while a well-aligned setup usually makes later inspection easier. Any change in movement can be traced more clearly when the parts were installed in a stable way from the beginning.

What Maintenance Practices Help Keep Speed And Precision Stable

Maintenance plays a quiet but steady role in the way gear movement holds up over time. Dust, residue, and wear do not usually appear all at once. They build up slowly, which means a system may seem fine for a while before the travel path starts to feel different.

Cleaning is one of the easiest ways to support normal operation. Small particles around the teeth or along the travel path can affect how the rack and pinion meet. In working spaces where dust or material residue is common, regular cleaning helps keep the contact area visible and easier to check.

Lubrication also needs attention. A suitable amount can reduce friction and help motion stay smooth. Too much residue can attract more dirt, so lubrication works better when it is handled with care rather than in large amounts.

Maintenance checks often include simple observations:

  • signs of wear on tooth surfaces
  • unusual noise during movement
  • changes in travel smoothness
  • looseness at fixing points
  • residue around contact areas

A small change in sound or movement may be the first hint that inspection is needed. A machine does not always give a clear warning before accuracy changes, so regular checks are often more useful than waiting for a visible fault.

Keeping a short maintenance record can also help. Notes about vibration, adjustment, or repeated cleaning provide a clearer picture of how the mechanism changes over time. That kind of record is often more useful than memory alone, especially in busy workshops.

How Can Operators Balance Speed And Precision In Practical Applications

Speed and precision often pull in different directions. A machine that moves too quickly may be harder to control at the stopping point, while a slower system may hold position better but not suit the pace of the work.

That balance depends on the job itself. A handling system may need to travel a longer distance with steady motion. A positioning machine may care more about how close the final stop stays to the target point. One setup is not a copy of another, so the movement need should always match the actual task.

Application Need Important Consideration
Faster travel Rotation speed and travel distance
Accurate stop point Alignment and repeatability
Heavy load movement Support structure and tooth contact
Repeated cycles Wear control and regular inspection

Motor output and gear choice also affect that balance. A strong drive can move a system faster, though the rest of the structure still needs to keep the path stable. If support parts, guides, or mounting points are not set well, speed alone does not help much.

In many machines, a controlled movement rate gives better results than pushing for more speed. Smooth start and stop behavior can matter more than raw travel rate when the job requires consistent positioning. That is why movement settings are usually chosen after looking at the full system instead of one number alone.

How Should Users Select Suitable Gear Rack Components For Equipment Needs

Selecting gear parts usually begins with the machine design, not with the part name. Different machines need different travel lengths, load conditions, and guide arrangements, so a suitable rack and pinion choice depends on how the equipment will actually work.

Some common questions help narrow the choice.

  • How far does the carriage need to travel?
  • How often will the motion repeat?
  • What kind of load will move along the path?
  • How much space is available for installation?
  • What level of positioning accuracy is needed?

A Helical Gear Rack Factory may support that process by sharing information about tooth processing, material handling, and product fit. That discussion is often more useful than looking only at catalog descriptions, because real machine conditions can differ from paper specifications.

Part selection also needs to fit the rest of the transmission system. Guides, supports, and mounting surfaces all influence how the rack and pinion behave once they are installed. A good match helps the machine run in a more natural way, while a poor match can create uneven wear or extra adjustment work.

For users who want both movement control and stable repeatability, choosing the right transmission part is part of the machine design itself rather than a separate purchase step.

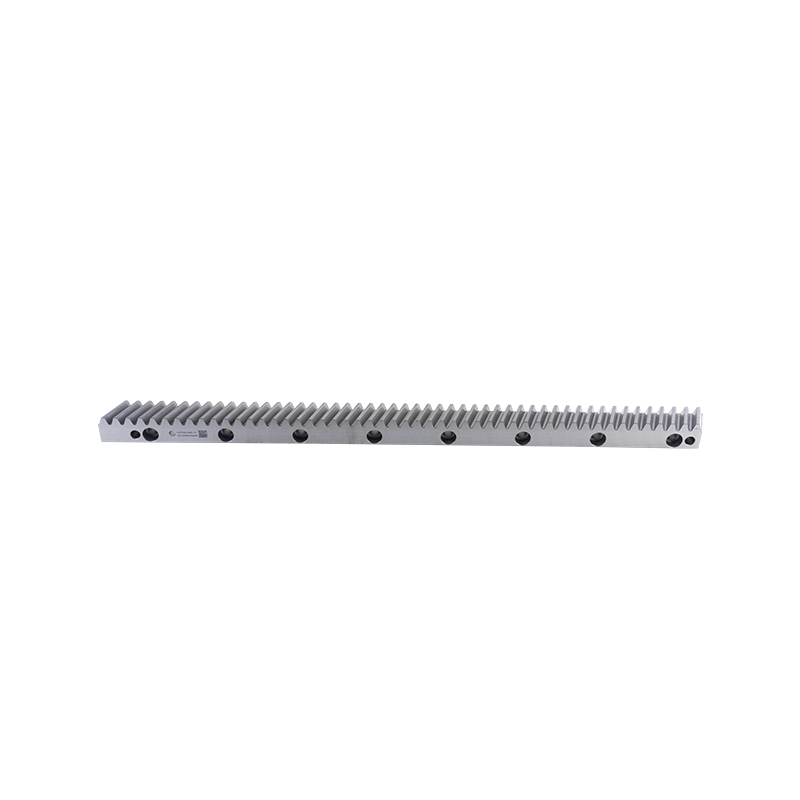

Yuchen Helical Gear Rack And Pinion For Motion Transmission

How Gear Transmission Technology Continues To Support Industrial Movement

Industrial machines continue to depend on motion systems that can handle different tasks without becoming hard to manage. Some equipment needs quick travel, while other systems need careful positioning and repeatable movement over long use periods.

A gear rack system remains useful because it connects rotation with straight-line movement in a direct way. That simple motion path fits many machines used in material handling, positioning, and automation work.

A helical gear rack and pinion setup also reflects the way modern equipment combines movement control with everyday maintenance needs. Smooth motion, stable contact, and easier inspection all matter when the machine runs for long periods.

Future design work may keep moving toward easier maintenance access, clearer movement control, and better fit between components. Those changes usually come from real working needs rather than from appearance alone.

Speed and precision stay connected to installation, maintenance, and component choice. When those parts work together, the transmission system becomes easier to manage through daily operation and longer service periods.
