Standard Transmission Gear Rack

Home / Product / Spur Gear Rack / Standard Transmission Gear Rack
Standard Transmission Gear Rack
  • Standard Transmission Gear Rack
Spur Gear Rack

Standard Transmission Gear Rack

Specifications:
Precision Class: DIN 11e27
Material: C45 / SUS304
Type:Straight Rack
Treatment of Teeth: Standard Milling
Pressure Angle: 20°
Sides Ground: Not Included
Heat Treatment: None by default; Optional tooth surface high-frequency hardening (45–50 HRC)
Surface Treatment: Optional black oxide or phosphating finish

Yuchen’s Standard Transmission Gear Rack is engineered to meet the needs of general and low-speed transmission applications. It is compatible with various machinery and equipment, providing a balance of durability, affordability, and ease of installation.

Key Features:
Consistent Quality: Manufactured using high-grade materials such as C45 and SUS304, ensuring durability and wear resistance through stable, mature processing techniques.

Economical Choice: Offers an nice cost-performance ratio, helping reduce the overall cost of transmission systems without sacrificing reliability.

Easy Installation: With its straightforward structure and strong adaptability, this gear rack simplifies the installation process while supporting accurate linear motion.

Ideal for low-speed and standard-duty mechanical applications, Yuchen’s gear rack delivers dependable performance with reduced maintenance requirements. Choose Yuchen—your practical partner in motion systems.

Contact Us
PREV：No previous article
NEXT：DIN10 Precision-Milled & Hardened Spur Gear Rack

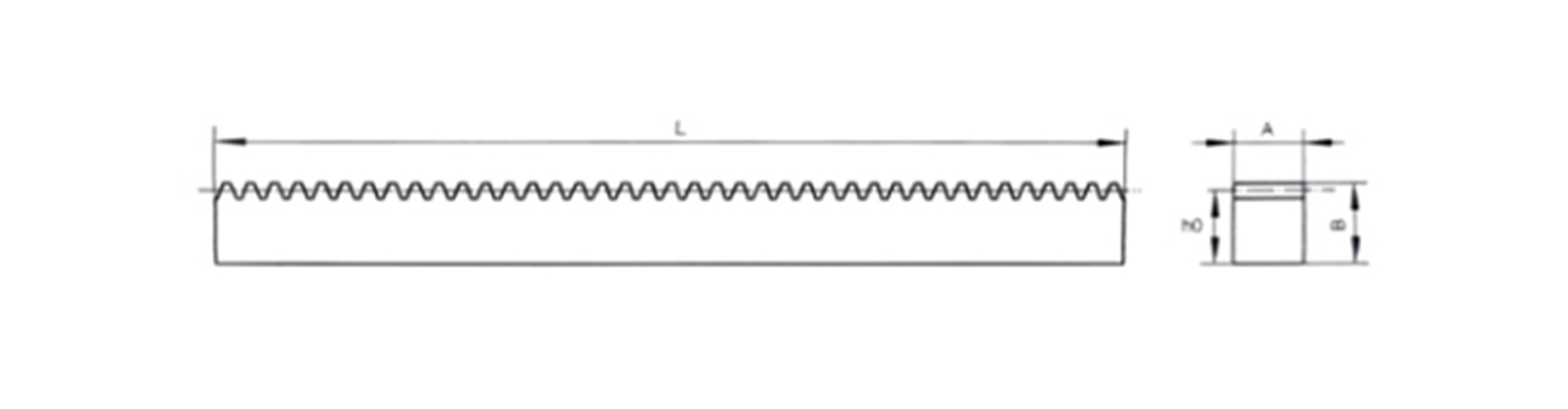

  • Model Modulus Tooth Pitch A B h0 Tooth Count
    PTCT01-999 1 3.1416 10 10 9 318
    1 3.1416 10 12 11 318
    1 3.1416 10 15 14 318
    1 3.1416 12 12 11 318
    1 3.1416 15 15 14 318
    1 3.1416 16 16 15 318
    1 3.1416 20 20 19 318
    PTCT15-999 1.5 4.7124 10 10 8.5 212
    1.5 4.7124 15 15 13.5 212
    1.5 4.7124 15 20 18.5 212
    1.5 4.7124 16 16 14.5 212
    1.5 4.7124 17 17 15.5 212
    1.5 4.7124 20 20 18.5 212
    1.5 4.7124 25 25 23.5 212
    PTCT02-999 2 6.2832 15 15 13 159
    2 6.2832 20 20 18 159
    2 6.2832 20 25 23 159
    2 6.2832 25 25 23 159
    2 6.2832 30 30 28 159
    PTCT25-997.46 2.5 7.854 20 20 17.5 127
    2.5 7.854 25 25 2.5 127
    2.5 7.854 25 30 27.5 127
    2.5 7.854 30 30 27.5 127
    PTCT03-999 3 9.4248 20 20 17 106
    3 9.4248 25 25 22 106
    3 9.4248 30 30 27 106
    3 9.4248 30 35 32 106
    3 9.4248 40 40 37 106
    PTCT04-1005.31 4 12.566 30 30 26 80
    4 12.566 40 40 36 80
    PTCT05-1005.31 5 15.708 40 40 35 64
    5 15.708 50 50 45 64
    PTCT06-999 6 18.85 50 50 44 53
    6 18.85 60 60 54 53
    PTCT08-1005.31 8 25.133 60 60 52 40
    8 25.133 80 80 72 40
    Customised length, width and height, perforation, splicing, high-frequency quenching, blackening and material selection are available.
